汽车水泵轴联轴承

WKN SERIES

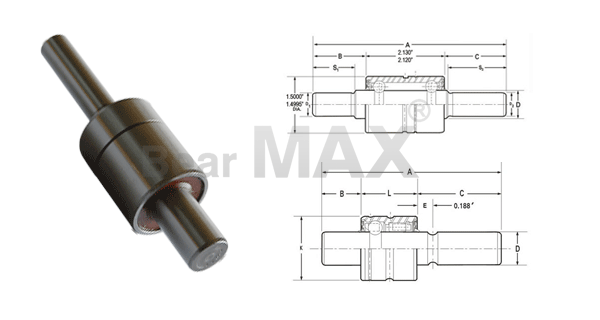

Bear MAX No. NSK No. FAG No. A B C D D1 S1 D2 S2
WIR193891 665803 WKN2357 3.58 1.31 0.14 0.747
WIR1938115 WKN2452
-1		 4.52 1.37 1.02 0.747
WIR1938115A 665853 WKN2454D 4.54 0.92 1.49 0.747 0.4739 1.41
WIR1938117B 665853 WKN2460D 4.6 1.06 1.41 0.747 0.627 0.35 0.4739 1.33
WIR1938120 665757 WKN2474-2 4.74 1.02 1.6 0.747 0.6267 1.54
WIR1938122 WKN2480 4.8 0.94 1.74 0.747 0.6267 1.58
WIR1938125 665729 WKN2493 4.94 1.14 1.67 0.747 0.6267 1.54
WIR1938127 WKN2501 5.01 1.15 1.74 0.747 0.6267 1.58
WIR1938128 WKN2502 5.02 1.1 1.79 0.747 0.6267 1.69
WIR1938133 WKN2524 5.25 1.28 1.84 0.747 0.6267 1.73
WIR1938133A WKN2524D 5.25 1.28 1.84 0.747 0.6267 1.73
WIR1938135 WKN2530 5.3 1.25 1.93 0.747 0.627 0.28 0.6267 1.76
WIR1938135A 665781 WKN2531 5.31 1.47 1.71 0.747 0.6267 1.61
WIR1938135B 665879 WKN2531-3 5.31 1.18 2 0.747 0.6267 1.9
WIR1938135C WKN2531-8D 5.31 1.19 2 0.747 0.4739 1.9
WIR1938135D WKN2531-9D 5.31 1.47 1.71 0.747 0.4739 1.61
WIR1938136 665735B WKN2534 5.34 1.26 1.96 0.747 0.6267 1.86
WIR1938137 665816 WKN2541-1 5.41 1.21 1.56 0.747 0.627 0.48 0.6267 1.56
WIR1938138 WKN2544-2 5.44 1.41 1.91 0.747 0.6267 1.45
WIR1938142 665705 WKN2558-2 5.58 1.45 2.01 0.747 0.6267 1.84
WIR1938144 WKN2564-6 5.65 1.21 2.31 0.747 0.627 0.48 0.6267 1.99
WIR1938146 WKN2575-1 5.75 1.43 2.19 0.747 0.627 0.54 0.6267 2.02
WIR1938146A 665760 WKN2575-4 5.75 1.43 2.19 0.747 0.627 1.2 0.6267 2.02
WIR1938149 WKN2588 5.88 1.45 2.3 0.747 0.6267 2.14
WIR1938151 WKN2592 5.93 1.38 2.42 0.747 0.6267 2.42
WIR1938151A 665714 WKN2592-2 5.93 1.38 2.42 0.747 0.627 0.51 0.6267 2.3
WIR1938151B 665877A WKN2596-1 5.96 1.22 2.61 0.747 0.627 0.48 0.6267 2.18
WIR1938153 WKN2602-2 6.02 1.82 2.07 0.747 0.627 1.14 0.6267 1.7
WIR1938153A 665807 WKN2604 6.04 1.8 2.11 0.747 1.98
WIR1938156B 665746 WKN2616 6.16 1.56 2.48 0.747 2.36
WIR1938158 665812 WKN2622 6.22 1.84 2.25 0.747 0.627 0.58 0.6267 2.08
WIR1938158A WKN2622-1D 6.22 1.84 2.26 0.747 0.627 0.58 0.6267 2.08
WIR1938158B 665707 WKN2623 6.23 1.7 2.4 0.747 0.627 0.56 0.6267 2.23
WIR1938159A WKN2624 6.25 1.38 2.74 0.747 0.627 0.51 0.6267 2.44
WIR1938161 665761 WKN2631 6.32 1.75 2.44 0.747 0.6267 2.32
WIR1938161A 665796 WKN2634-1 6.34 1.84 2.37 0.747 0.627 1.31 0.6267 2.2
WIR1938175 665813 WKN2688 6.88 2.11 2.65 0.747 0.627 0.56 0.6267 2.51
WIR1938175A 665824 WKN2688-1 6.88 1.38 3.38 0.747 0.627 0.56 0.6267 3.2
WIR1938175B WKN2688-3D 6.88 1.38 3.38 0.747 0.627 0.56 0.4739 2.36
WIR1938175C WKN2688-7D 6.88 2.07 2.69 0.747 0.4739 1.69
WIR1938115-OS WKN6454D 4.54 0.92 1.49 0.749 0.4759 1.41
WIR1938120-OS WKN6474-2 4.74 1.02 1.6 0.749 0.629 1.54
WIR1938136-OS WKN6534 5.34 1.26 1.96 0.749 0.629 1.86
WIR1938142-OS WKN6560-2B 5.61 1.32 2.16 0.749 0.627 0.6 0.6267 1.99
WIR1938146-OS WKN6575-1B 5.75 1.43 2.19 0.749 0.627 0.54 0.629 2.02
WIR1938151-OS WKN6592-2B 5.93 1.38 2.42 0.749 0.627 0.51 0.629 2.3
WIR1938151A-OS WKN6596B 5.96 1.21 2.62 0.749 0.627 0.48 0.629 2.11
WIR1938158-OS WKN6623B 6.23 1.7 2.4 0.749 0.627 0.56 0.629 2.23
WIR1938161-OS WKN6634-1 6.34 1.84 2.37 0.749 0.629 0.32 0.629 2.2
WK SERIES
Bear MAX No. NSK No. FAG No. A B C D D1 S1 D2 S2
WIB1938135A-OS WK6531-3 5.31 1.18 2 0.749 0.629 1.9
WIB1938136-OS 885735-OS2 WK6534 5.34 1.26 1.96 0.749 0.6287 1.86
WIB1938137-OS 885737-OS WK6537-1B 5.37 1.43 1.82 0.749 0.627 0.49 0.6287 1.71
WIB1938137A-OS 885810-OS2 WK6538 5.38 1.45 1.81 0.749 0.629 1.3 0.6287 1.67
WIB1938137B-OS 885870-OS WK6538-2B 5.38 1.59 1.67 0.749 0.627 0.56 0.6287 1.55
WIB1938140-OS 885821-OS WK6550B 5.5 1.4 1.97 0.749 0.627 0.61 0.6287 1.88
WIB1938141-OS 885720-OS2 WK6553-2 5.54 1.56 1.85 0.749 0.6287 1.72
WIB1938142-OS 885719-OS2 WK6558 5.58 1.73 1.72 0.749 0.6287 1.61
WIB1938142A-OS 885815-OS2 WK6559-2 5.59 1.25 2.21 0.749 0.6287 2.04
WIB1938142B-OS 885851-OS2 WK6560 5.61 1.55 1.93 0.749 0.627 1.41 0.6287 1.79
WIB1938142C-OS WK6560-2B 5.61 1.32 2.16 0.749 0.627 0.6 0.629 1.99
WIB1938143-OS 885815A-OS WK6564 5.64 1.4 2.11 0.749 0.6287 1.94
WIB1938144-OS WK6564-6B 5.65 1.21 2.31 0.749 0.627 0.48 0.629 1.99
WIB1938146A-OS 885818-OS2 WK6574-2 5.74 1.76 1.86 0.749 0.6287 1.69
WIB1938146B-OS 885747-OS WK6575-1B 5.75 1.43 2.19 0.749 0.627 0.54 0.6287 2.02
WIB1938146-OS 885760-OS WK6575-4 5.75 1.43 2.19 0.749 0.629 1.25 0.6287 2.02
WIB1938149A-OS WK6586 5.86 1.61 2.12 0.749 0.629 1.39 0.629 1.95
WIB1938149-OS 885801-OS2 WK6587 5.87 2.1 1.64 0.749 0.6287 1.5
WIB1938151A-OS 885764-OS2 WK6592 5.93 1.38 2.42 0.749 0.6287 2.3
WIB1938151-OS WK6596-1B 5.96 1.21 2.62 0.749 0.627 0.48 0.629 2.54
WIB1938152-OS 885775SC-OS WK6600B 6 1.4 2.47 0.749 0.627 0.6 0.6287 2.38
WIB1938153C-OS 8855865A-OS WK6602-2B 6.02 1.83 2.07 0.749 0.627 1.12 0.6287 1.69
WIB1938153B-OS 885857-OS WK6602B 6.02 2.11 1.78 0.749 0.627 1.12 0.6287 1.64
WIB1938153-OS 885807C-OS2 WK6604 6.04 1.8 2.11 0.749 0.6287 1.97
WIB1938154-OS WK6607B 6.07 1.17 2.78 0.749 0.627 0.46 0.629 2.25
WIB1938156-OS 885746-OS2 WK6616-2 6.16 1.56 2.48 0.749 0.6287 2.36
WIB1938158A-OS WK6622B 6.22 1.84 2.25 0.749 0.627 0.58 0.629 2.08
WIB1938158-OS WK6623B 6.23 1.7 2.4 0.749 0.627 0.56 0.629 2.23
WIB1938161-OS 885796-OS WK6634-1 6.34 1.84 2.37 0.749 0.629 1.31 0.6287 2.2
WIB1938162-OS 885858-OS WK6637B 6.38 1.4 2.85 0.749 0.627 0.6 0.6287 2.76
WIB1938175-OS WK6688 6.88 2.07 2.69 0.749 0.629 0.56 0.629 2.57
WIB1938117 WK2461 4.62 0.53 1.96 0.747 0.6267 1.86
WIB1938120 WK2474-2 4.74 1.02 1.6 0.747 0.6267 1.5
WIB1938123 WK2484-1 4.85 1.22 1.5 0.747 0.627 0.55 0.6267 1.3
WIB1938125 WK2493 4.93 1 1.8 0.747 0.6267 1.65
WIB1938126 WK2494-1 4.94 1.04 1.78 0.747 0.627 0.9 0.6267 1.6
WIB1938126A 885832 WK2495 4.95 1.21 1.61 0.747 0.627 1.08 0.6267 1.47
WIB1938127 WK2500-2 5 1.23 1.64 0.747 0.6267 1.5
WIB1938127A 885875SC WK2500A 5 1.05 1.83 0.747 0.627 0.35 0.6267 1.72
WIB1938127B WK2501 5.01 1.15 1.74 0.747 0.6267 1.58
WIB1938128 885869 WK2501-3 5.02 1.22 1.67 0.747 0.627 0.54 0.6267 1.55
WIB1938132 885852 WK2520 5.2 1.17 1.9 0.747 0.627 0.47 0.6267 1.7
WIB1938134B WK2528-2 5.28 1.19 1.96 0.747 0.6267 1.86
WIB1938135 885781 WK2531 5.31 1.47 1.71 0.747 0.6267 1.61
WIB1938135A WK2531-2 5.31 1.47 1.72 0.747 0.627 0.67 0.6267 1.62
WIB1938136 885735 WK2534 5.34 1.25 1.96 0.749 0.6267 1.86
WIB1938137 885737 WK2537-1 5.37 1.43 1.82 0.749 0.627 0.49 0.6267 1.71
WIB1938137A 885870 WK2538-2 5.38 1.59 1.67 0.747 0.627 0.56 0.6267 1.55
WIB1938140 885821 WK2550 5.5 1.4 1.97 0.747 0.627 0, .61 1.88
WIB1938140A 885771 WK2553 5.53 1.29 2.11 0.747 0.627 0.54 0.6267 1.99
WIB1938142 WK2559-2 5.59 1.25 2.21 0.747 0.6267 2.04
WIB1938142A 885851 WK2560 5.61 1.55 1.93 0.749 0.627 1.41 0.6267 1.79
WIB1938144 885862B WK2564-6 5.65 1.21 2.31 0.749 0.627 0.48 0.6267 1.99
WIB1938146A 885802B WK2575 5.75 1.75 1.88 0.747 0.6267 1.73
WIB1938146B 885747 WK2575-1 5.75 1.43 2.19 0.747 0.627 0.54 0.6267 1.99
WIB1938146 885760 WK2575-4 5.75 1.43 2.19 0.747 0.627 1.2 0.6267 2.02
WIB1938149A 885740 WK2586 5.86 1.62 2.12 0.747 0.627 1.39 0.6267 1.95
WIB1938149B 885801 WK2587 5.87 2.1 1.64 0.747 0.6267 1.5
WIB1938149 WK2587-1 5.87 2.1 1.64 0.747 0.6267 1.5
WIB1938151 885764 WK2592 5.93 1.38 2.42 0.747 0.6267 2.3
WIB1938151A WK2596 5.96 1.21 2.62 0.747 0.627 0.48 0.6267 2.11
WIB1938151B WK2596-1 5.96 1.22 2.61 0.747 0.627 0.48 0.6267 2.18
WIB1938152 885844 WK2600 6 1.4 2.47 0.747 0.627 0.6 0.6267 2.38
WIB1938153C 885865A WK2602-2 6.02 1.82 2.07 0.747 0.627 1.12 0.6267 1.7
WIB1938153 885807C WK2604 6.04 1.8 2.11 0.747 0.6267 1.97
WIB1938154 885795SC WK2607A 6.07 1.17 2.78 0.747 0.627 0.35 0.6267 2.25
WIB1938157 885746 WK2616-2 6.17 1.56 2.48 0.747 0.6267 2.35
WIB1938158 WK2623 6.23 1.7 2.4 0.747 0.627 0.56 0.6267 2.23
WIB1938161 WK2634-1 6.34 1.84 2.37 0.747 0.627 1.31 0.6267 2.2
WIB1938162 885858 WK2637 6.38 1.4 2.85 0.747 0.627 0.6 0.6287 2.76
WIB1938120-OS WK6474-2 4.74 1.02 1.6 0.749 0.629 1.54
WIB1938120A-OS WK6474-2D 4.74 1.02 1.6 0.749 0.629 1.54
WIB1938123-OS WK6484-1 4.85 1.22 1.5 0.749 0.629 0.55 0.629 1.3
WIB1938125-OS WK6493 4.93 1.24 1.8 0.749 0.629 1.65
WIB1938126A-OS 885832-OS2 WK6495 4.95 1.05 1.61 0.749 0.629 1.08 0.6287 1.47
WIB1938127-OS 885811-OS2 WK6500-2 5 1.22 1.64 0.749 0.6287 1.5
WIB1938127A-OS 885775SC-OS WK6500B 5 1.17 1.83 0.749 0.628 0.35 0.6295 1.72
WIB1938128-OS 885869-OS WK6501-3B 5.02 1.25 1.67 0.749 0.627 0.54 0.6287 1.55
WIB1938132-OS 885852-OS2 WK6520B 5.2 1.47 1.9 0.749 0.627 0.47 0.6287 1.7
WIB1938135B-OS WK6530B 5.3 1.93 0.749 0.629 0.28 0.629 1.74
WIB1938135-OS 885781-OS2 WK6531 5.31 1.71 0.749 0.6287 1.61
WNS SERIES
Bear MAX No. NSK No. FAG No. A B C D K L D1 S1 D2 S2
WIR163067 WNS2299-2 2.99 0.64 1.29 0.627 1.18 1.06 0.4739 1.21
WIR163083 WNS2325-1 3.25 0.72 1.47 0.627 1.18 1.06
WIR122485 664101 WNS2332 3.33 0.81 1.46 0.473 0.94 1.06
WIR163085 WNS2355 3.35 0.56 1.73 0.627 1.18 1.06 0.4739
WIR163086 WNS2337-1 3.38 0.57 1.63 0.627 1.18 1.18 0.4739 1.55
WIR163087A WNS2340 3.41 0.53 1.34 0.627 1.18 1.53 0.4739 1.25
WIR153087 WNS2344-2 3.44 0.65 1.38 0.591 1.18 1.42
WIR163087 WNS2344-6 3.44 0.53 1.5 0.627 1.18 1.42 0.4739 1.35
WIR163088 WNS2348-5 3.48 0.76 1.66 0.627 1.18 1.06 0.4739 1.56
WIR163090 WNS2353 3.53 0.65 1.64 0.627 1.18 1.24 0.4739 1.56
WIR153090 WNS2354-2 3.54 0.71 1.3 0.591 1.18 1.53 0.4739 1.22
WIR163091 WNS2360-1 3.6 0.52 1.35 0.627 1.18 1.73 0.4739 1.25
WIR1530104 WNS2411 4.11 1.03 1.56 0.591 1.18 1.53 0.4739 1.44
WIR1530106 WNS2417 4.17 1.09 1.56 0.591 1.18 1.53 0.4739 1.44
WIR1630108 WNS2426 4.26 0.73 2.01 0.627 1.18 1.53 0.4739 1.93
WIR1530109 WNS2430-2 4.3 0.7 1.56 0.591 1.18 2.05 0.4739
WIR1530119 WNS2466 4.67 1.06 1.56 0.591 1.18 2.05 0.4739 1.44
WIR2036122 WNS2482 4.82 1.14 1.63 0.787 1.42 2.05 0.5906 1.13 0.4739 1.44
WIR1530125 WNS2493 4.93 0.7 2.19 0.591 1.18 2.05
WIR2555127 WNS2500 5 0.98 1.65 1 2.17 2.36 0.6267 1.61
WIR2555127A WNS2500-1 5 0.98 1.65 1 2.17 2.36 0.5906 1.61
WIR2036131 WNS2514 5.15 1.3 1.8 0.787 1.42 2.05 0.5906 1.29 0.5906 1.68
WIR2547136 WNS2535-1 5.36 0.93 2.31 1 1.88 2.13 0.7465 0.82 0.6267 2.11
WIR255157 WNS2616-6 6.17 1.39 2.41 1 2.17 2.36 0.7465 0.5 0.6267 2.28
WIR163076 WNS6299-2 2.99 0.64 1.29 0.627 1.18 1.06 0.4759 1.21
WS SERIES
Bear MAX No. NSK No. FAG No. A B C D K L D1 S1 D2 S2 D22 S22
WIB163098 WS2385-8 3.86 0.71 1.62 0.627 1.18 1.53
WIB1226102 WS2401 4.02 1.06 1.38 0.474 1.02 1.57
WIB1938102 885881 WS2401-3 4.02 0.55 1.84 1.5 1.63 0.6267 1.76 0.5138 0.78
WIB2047111 WS2436 4.36 0.6 1.9 0.787 1.85 1.87 0.6267 1.88
WIB1938113 WS2443 4.44 1.13 1.68 1.5 1.63 0.6267 1 0.6267 1.56
WIB1938117A WS2460 4.61 0.96 2.02 1.5 1.63 0.6267 1.7
WIB1938119 885786 WS2468-2 4.69 1.05 2.01 1.5 1.63 0.6267 1.89
WIB1630123 WS2485 4.85 1 1.6 0.627 1.18 2.25
WIB1630128 WS2503 5.04 0.91 1.88 0.627 1.18 2.25
WIB1938130 WS2509 5.1 1.3 1.68 1.5 2.13 0.6692 1.2 0.6692 1.58
WIB3055130 WS2511 5.12 1.26 1.99 1.181 2.17 1.86 0.5906 1.88
WIB163098 WS3385-7 3.86 0.67 1.66 0.627 1.18 1.53
WIB122480 WS6315-1 3.15 0.56 1.28 0.5 0.94 1.31
WIB163080 WS6315-2 3.15 0.62 1.47 0.627 1.18 1.06
WIB122485 WS6332 3.33 0.81 1.46 0.476 0.94 1.06
WIB163085 WS6332-1 3.33 0.68 1.59 0.627 1.18 1.06
WIB122690-OS WS6354 3.54 1.47 0.54 0.474 1.02 1.54
WIB122692-OS WS6364-4 3.64 1.47 0.64 0.474 1.02 1.54
WIB122694-OS WS6372 3.72 0.85 1.34 0.474 1.02 1.53
WIB1938102-OS 885881
-OS		 WS6401-3 4.02 0.55 1.84 0.749 1.5 1.63 0.6267 1.76 0.5138 0.78
WIB1938113-OS 885841
-OS2		 WS6443 4.44 1.13 1.68 0.749 1.5 1.63 0.6287 1 0.6287 1.56
WIB1938119-OS WS6468-2 4.69 1.05 2.01 0.749 1.5 1.63 0.629 1.89
WIB1938121-OS WS6475B 4.75 1.32 1.81 0.749 1.5 1.63 0.6267 0.63 0.629 1.71
【返回顶部】
公司简介   |   企业邮箱   |   联系我们 技术支持:   谷多网络
Copyright © 2012 慈溪贝尔迈克斯轴承有限公司 版权所有
